"PZ-9" Type Mud pump and its spare parts from China manufacturer - XI'AN KINGWELL OILFIELD MACHINERY CO.,LTD

"PZ-9" Type Mud pump and its spare parts

Price:	1000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Shaanxi, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: PZ-9 Type Mud pump

Production Capacity: 50set/year

Delivery Date: 30days after the down payme...

Certification: Others

Origin: China

Standard: API& ISO

Theory: Reciprocating Pump

Pressure: High pressure

Outer size: 174*121*78 inch

Means of Transport: Ocean

Packing: Polywood case or steel cart...

Type: Others

Brand Name: KINGWELL

Material: Alloy steel

Condition: New and unused

Power: Pneumatic

Stroke: 7"(177.8)

Structure: Piston pump

API StandardPZ-9 Type Mud pump
1). API specifications.
2). Good service with comeptitive price
3). Timely delivery
4). OEM interchangeable parts

1.PZ-9 Pump Technical specifications:

Type Parameter	PZ9
Input power rating (KW)	746 (1000HP)
Rated pump speed (SPM)	130
Stroke Length (mm)	228.6(9")
Gear ratio	4.483
Rated speed of transmission shaft (RPM)	582
Max. working pressure (Kg/sq.cm)	352 (5000PSI)
Valve size (API)	7#
Max. liner diameter (inch)	Φ7"
Max. displacement (GPM)	585
Max. liner pressure (Kg/sq.cm)	186 (2639PSI)
Diameter of suction pipe (mm)	254 (10")
Diameter of discharge pipe (mm)	100 (4")
Overall dimensions	432025002600mm
Weight (without dampener and joint atc)	12.48T
Weight (with skid)	15.5T

2. PZ-9 Pump Performance Data:

Dia. of Liner	IN	7"	6-1/2"	6"	5-1/2"	5"	4-1/2"
	Gallon/Minute	585	504	430	361	298	212
Displacement	Liter/Minute	2214	1908	1628	1367	1128	916
Discharge	PSI	2639	3060	3592	4274	5000	5000
Pressure	(Kg/sq.cm)	186	215	253	301	352	352

3. Semi-finished mud pump frame of QW-9 type:

4. Finished product:

5. Kingwell processing workshop:

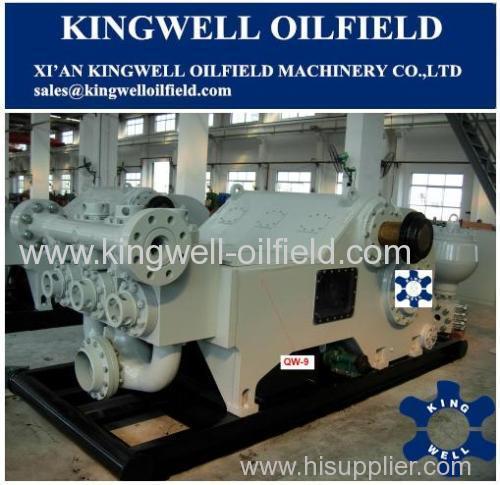

API Standard QW-9 Type Mud Pump

6. Kingwell package for the mud pump spare parts and shipment photos:

7. Kingwell introduction:
Xi'an Kingwell Oilfield Machinery Co.,Ltd is a highly reputable supplier for oilfield equipment and services to Oil & Gas industries and provide complete solutions.

With over 10 years developing, we were developed from the beginning drilling service supplier to a manufacture who have own factory and specially produce Rig parts and accessories, API mud pump and spare parts, DST tools products.

We have experienced team, stronger enough to meet any challenge, we do believe honest is the base of business and cooperation; our aim is to build solid relationship with any part of honest. We can provide highly efficient services to each client resulting in accurate and timely deliveries at the best prices. We sincerely hope to make cooperation and mutual benefit wih any people who are in Oil & Gas industry.

API Stanard F-1300 Mud pump

8. Training and Field Supports

We have a team of well qualified and experienced field support personnel for Training. According to customer's requirements, we provide operation training service for our customers who cooperated with us.

Generally speaking, our customer training mainly includes followings:

1) To know the basic knowledge of the products, such as the usage, the working environments, the working principles, the structure, ect.

2) To learn the operation and use of products.

3) To master the basic requirement of designs of tool strings and of testing operation.

9. Product delivery:

Payment term: 30% deposit by T/T or L/C and 70% before shipment.

Warranty: Warranty period is 12 months after installation.

Origin: China Mainland.

Minimum order: 1 sets

Packaging: wood case or steel frame which suitable for long term transportation.

Delivery Date: within 30 days after receiving the deposit.

Logo: KW or customize.
