drill stem testing tools parts from China manufacturer - XI'AN KINGWELL OILFIELD MACHINERY CO.,LTD

Price:	1.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Shaanxi, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: drill stem testing tools pa...

Production Capacity: 100 sets per month

Delivery Date: within 1-2 month(s) after r...

Working pressure: 10000psi ~ 15000psi

product model: DST tools

material: alloy

Standard or Nonstandard: Standard

Condition: New

Means of Transport: Ocean

Packing: wood case or steel carton

Certification: API, ISO, NACE, MRO175-2002

Service: H2S, CO2

Working condition: High pressure high temperat...

Application: Drill stem testing

package: wood case or steel carton

Specifications:
1.Halliburton type, all could change with Halliburton parts. 2.All the equipment are produced according to API standard

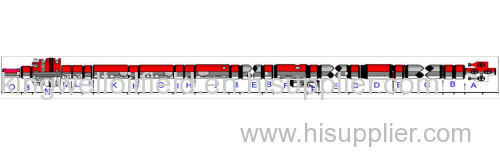

5 " Drill Stem Testing Tools String Parts

1.Halliburton type, all could change with Halliburton parts.
2.All the equipment are produced according to API standard

The following product technical parameters

2.	Slip Joint OD: 5² :5" ID: 2.25²:2.25" Pressure rating : Differential: 10,000 Psi. Service: H2S/acid Temperature: 3500F. Stroke:5 ft Tensile strength at: 300 klbf. Connection: 31/2² IF, Box up x Pin down 31/2²X		No.	03 (Three)
3.	RD-Safety Circulating Valve RD OD: 5² :5² ID: 2.25² :2.25² Pressure rating Differential: 10,000 Psi. Service:H2S/acid Temperature: 3500F. Tensile strength at: 300 klbf. Connection: 31/2² IF, Box up x Pin down 31/2²X		No.	01 (One)
4.	Multi Cycle Circulating Valve or its Equivalent OD: 5² :5² ID: 2.25² :2.25² Pressure rating Differential: 10,000 Psi. Service:H2S/acid Temperature: 3500F. Tensile strength at: 300 klbf. Connection: 31/2² IF, Box up x Pin down 31/2²X		No.	01 (One)
5.		Drain Valve OD: 5² :5² ID: 2.25² :2.25² Pressure rating Differential: 10,000 Psi. Service:H2S/acid Temperature: 3500F. Tensile strength at: 300 klbf. Connection: 31/2² IF, Box up x Pin down	No.	01 (One)
6.		Annulus Operated Tester Valve or its Equivalent OD: 5² ID: 2.25² Pressure rating Differential: 10,000 Psi. Service:H2S/acid Temperature: 3500F. Tensile strength at: 300 klbf. Connection: 31/2² IF, Box up x Pin down	No.	01 (One)
7.		External Gauge Carrier OD: 5² ID: 2.25² Pressure rating Differential: 10,000 Psi. Service:H2S/acid Temperature: 3500F. Tensile strength at: 300 klbf. Connection: 31/2² IF, Box up x Pin down NB. It should be hold 4 gauges at a time. NB.4	N0	01 (One)
8.		Hydraulic Circulating Valve OD: 5² ID: 2.25² Pressure rating Differential: 10,000 Psi. Service:H2S/acid Temperature: 3500F. Tensile strength at: 300 klbf. Connection: 31/2² IF, Box up x Pin down	No.	01 (One)
9.		Hydraulic Jar OD: 5² ID: 2.25² Pressure rating Differential: 10,000 Psi. Service:H2S/acid Temperature: 3500F. Tensile strength at: 300 klbf. Connection: 31/2² IF, Box up x Pin down	No.	01 (One)
10.		Safety Joint for packer OD: 5² ID: 2.25² Pressure rating Differential: 10,000 Psi. Service:H2S/acid Temperature: 3500F. Tensile strength at: 300 klbf. Connection: 31/2² IF, Box up x Pin down	No.	01 (One)
11.		Mechanical Set Retrievable Packer, Size: 7² ID: 2.25² (minimum) Pressure rating Differential: 10,000 Psi. Service:H2S/acid Temperature: 3500F. Tensile strength at: 300 klbf. Connection: 31/2² IF, Box up x Pin down NOTE: The manufacturer should quote the Packer Considering casing weight range from: 29 to 35 pound per foot .::2935/	No.	01 (One)
12.		Mechanical Set Retrievable Packer, Size: 95/8² ID: 3.75² (minimum) Pressure rating Differential: 10,000 Psi. Service:H2S/acid Temperature: 3500F. Tensile strength at: 300 klbf. Connection: 41/2² IF, Box up x Pin down NOTE: The Tenderer should quote the Packer Considering casing weight range from: 43 to 53.5 pound per foot.	No.	01 (One)
13.		Electronic Memory Gouge (3500F, 10,000 psi)	No.	06 (six)
14.		Batteries for Memory Gauges (rechargeable)	No.	12 (twelve)
15.		Mule Shoe ID: 2.25² (minimum) Connection: 31/2² IF, Box up31/2² IF, Box up x Pin down	No.	01 (One)
16. a		Cross Over 41/2² IF, Box up x 3 ½² Pin down	No.	02 (Two)
16.b		Cross Over 31/2² IF, Box up x 41/2² Pin down	No.	01 (One)
17.		Lifting Sub (To run DST tool.) DST	As Required
18.		Laptop (320GB hard disk, Core 2 Duo Processor and 3GB RAM) with Preloaded Soft were & Printer (320GB,23GB)	No.	02 (Two)
19.		High Pressure Pneumatic Pump, For water service. Rated for 15,000 Psi. With Hoses-10,000 Psi & Connections. ,:15000 Psi,10000Psi, Interconnecting Tubing and Fittings, Aluminium Enclosure with Gauges and Valves on Panel, Common Fluid Inlet on Panel, Fluid Discharge Port.,,..	No.	01 (One)
20.		Nitrogen Booster Pump	No.	01 (One)
21.		Drain Collar for Drain Valve	No.	01 (One)
22.		Drain Nipple For Drain Valve	No.	01 (One)
23.		Nitrogen Bottle with 99% Pure Nitrogen, (8 Cu, Ft.). 99% (8 Cu, Ft.).	No.	01 (One)
24.		Cleaning unit (WaterJet Pressure cleaner, with adjustable nozzles) for maintenance of DST Tools with Hoses & Connections. DST,().	Set	01 (One)
		Any Equipment, tolls or accessories which are not listed in this section but might be necessary or handy for the purpose; the tender have freedom to submit their proposal mentioning such Equipment, tolls or accessories. Note: ID of the DST Tools will not be less then 2.25".:DST2.25"

5 " drill stem testing tools string parts at stock
5drill stem testing tools string parts
DST TOOLS PARTS

Any enquiry of above products or relative parts, PLS feel free contact back, and we will offer you a good price and show you our best service.

also we can supply:
1.RTTS Packer
