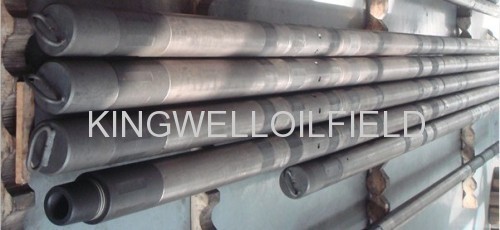

DST Tools 3 7/8'' Pressure Operated Tester Valve( Drill stem testing)

Operate:Pressure Operated Tester Valve

Product model:LPR-N Tester Valve

Size:5"

Service:H2S, CO2

Working condition:HPHT

Application: oil well testing

Usage: Offshore Oil and Gas Field Exploitation Machinery

Product model: Tester Valve

Working pressure: 10000psi ~ 15000psi

Condition: New

Standard: API

Briefly Introduction

The Pressure Operated tester valve is a full- opening, annulus pressure-operated valve. It measures multiple closed-in pressures in cased holes where pipe manipulation is restricted and a full-opening string is required. The nitrogen chamber is charged at the surface to a selected pressure determined by surface temperature, bottomhole temperature, and bottomhole pressure. If the intended test requires a permanent packer that uses a stinger mandrel or seal nipple, a variety of bypass tools are available, depending on field application, to help ensure that the formations and downhole equipment are protected from excessive pressure buildup.

Features and Benefits
• The ball valve operates independently of internal pressure changes, such as with acidizing or fracturingoperations.
• Advancedmaterials and processes provide a unique metal-to-metal seat for exceptionalgas-holding capabilities.
• The Pressure operated tester valve (LPR-N valve) has been through an extensive five-day qualification testingat 400°F and15,000 psi burst and collapse pressures.
• An open-in feature allows the operator to run the Pressure Poerated tester in the hole with the ball valve opened orclosed.
• Fluids can bespotted or circulated through the PRESSURE OPERATED tester  (LPR-N valve)with the packer unseated.

• A double nitrogenchamber can be added to the Pressure operated tester for use in deep, hot,high-pressure wells to reduce the operating pressure.

Specifications:
1. Halliburton type, all could change with Halliburton parts.
2. All equipments are produced according to API standard NACE MRO175-2002

KINGWELL INTRODUCTION

Xi'an Kingwell Oilfield Machinery Co.,Ltd is a professional supplier for oilfield products according to the API standard.
Our products have exported to USA, Canada, Egypt, India and UEA , etc Now, with high quality and short supply and good service, our products has got good reputation home and abroad
Here we got some prise as follows.

Certifications

Kingwell is a CNPC & SINOPEC & BV certified company, having all the Quality Systems in place for design, planning, manufacturing and quality monitoring & traceability to ensure our products match the highest quality standards.

We test our products strictly according to the NACE MR 0175-2002 Standard and our quality assurance period is 12 months.

Certificates endorsed by DNV/BV/ABS and Documents we can supply with the shipments:

1. Pressure Test Certificate with Graph and time recorded.

2. Function Test

3. Rubber Products NACE Compliance

4. Material Mill Certificate and treatment characteristics

5. H2S Compliance

6. Service Manual

7. Parts Manual

8. Testing Procedures.

9. Open up type tool drawing for dressing purpose– if any.

Design & Development

Kingwell has an ongoing relationship with Xi'an Petroleum University and built up long term cooperation with China Aerospace Group for more than 10 years. Design Department is familiar with CAD and Pro-E facilities and has on rolls qualified & experienced engineers. Now, they are engaged in development of new products as required in the market place. Kingwell' products are validated in-house in a Test Well, a Sub-surface Type Test Facility with simulated well conditions up to 15000 psi Differential pressure , 400°F and Max 450°F.

Inspection and Test Facilities

We own the world-class facilities with professional laboratory technicians. The main facilities are Surface Testing (Hydraulic Testing Unit), high temperature heat treatment furnaces, API Gages (Master & Working), Profile Projector, tensile testing machine, pressure sensor and data acquisition system, Universal Testing Machine, Hardness Tester, Nitrogen Pump, Function Test Pump, Ultrasonic Thickness Tester etc. All the goods must be tested by several processes and must be qualified when packed.

The followings are some pictures of Test Facility

Training and Field Supports

We have a team of well qualified and experienced field support personnel for Training. According to customer's requirements, we provide operation training service for our customers who purchase our products.

Generally speaking, our customer training mainly includes followings:

1) To know the basic knowledge of the products, such as the usage, the working environments, the working principles, the structure, ect.

2) To learn the operation and use of products.

3) To master the basic requirement of designs of tool strings and of testing operation.

Related products

We also provide accessories and other related products, which you can find in this website.

The following is the pictures about products accessories and some other related products

Product delivery

Payment:TT/LC:30% advance payment.70%before shipment

Warranty: Warranty period is 1 year after installation.

Origin: China

Minimum order: 1 set

Packaging: wood case or steel carton

Delivery Date: within 1-2 month(s) after receiving prepayment

Logo: KW, we can produce according to customer requirements.

Technical Documents: We can provide technical documents according to your requirements.

Additional service: Customers are served to test our products in our factory upon request.

Service

We believe in Customer delight, achieved by the supply of Quality Products & Services and Continual Improvement in our Manufacturing Processes for timely delivery at competitive prices. We work in a professional, competitive, and cost-effective manner consistent with the Customer requirement

Any enquiry of above products or relative parts, PLS feel free contact back, and we will offer you a good price and show you our best service.
